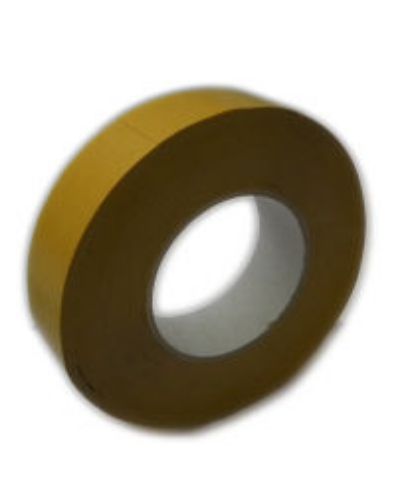

Industrial Double Sided Self Adhesive Tape 25mmx50m
High-Tack Adhesive Tape for Nameplates, Labels and Industrial Applications
Our high-performance double-sided self-adhesive tape provides a strong, reliable bonding solution for attaching engraved nameplates, identification labels, industrial signs, plaques and decorative emblems.
Manufactured using a durable unplasticised PVC film carrier coated on both sides with a solvent-based acrylic adhesive, this tape offers excellent initial tack, good shear resistance and a thin, professional finish.
With an overall thickness of just 0.21mm, it allows labels and nameplates to be securely attached without significantly increasing their finished thickness.
The tape is easy to tear by hand and features a removable release liner, making application quick and straightforward without the mess associated with liquid adhesives.
Key Features
-
High-tack acrylic adhesive – Strong initial adhesion and reliable bonding performance.
-
Double-sided construction – Adhesive coating on both sides for convenient mounting.
-
Thin 0.21mm profile – Ideal for low-profile label and nameplate applications.
-
Durable PVC carrier – Provides dimensional stability and strength.
-
Easy application – Hand-tearable tape with a removable protective release liner.
-
Clean, professional finish – No visible screws, rivets or messy liquid adhesive.
-
Versatile bonding – Suitable for many metal, plastic, glass and wood surfaces.
-
UK origin – Manufactured in the United Kingdom.
Typical Applications
Our industrial double-sided adhesive tape is suitable for a wide range of commercial, manufacturing and identification applications, including:
-
Engraved aluminium and stainless steel nameplates
-
Industrial identification and asset labels
-
Traffolyte and plastic engraved labels
-
Machinery and equipment identification plates
-
Control panel labels and fascias
-
Brass plaques and decorative nameplates
-
Signs, emblems and product identification
-
General industrial assembly and mounting applications
Technical Specifications
| Property |
Specification |
| Adhesive Type |
Solvent-based acrylic |
| Width |
25mm |
| Roll Length |
50M |
| Carrier Material |
0.05mm unplasticised PVC film |
| Release Liner |
90g/m² honey glassine |
| Overall Thickness |
0.21 ± 0.01mm |
| Peel Adhesion |
PSTC-3: 2.5kg/25mm |
| Loop Tack |
FINAT-9: 3.0kg/25mm |
| Shear Strength |
PSTC-7: Over 72 hours at 25°C, 1kg load |
| Heat Resistance |
Over 24 hours at 70°C, 0.5kg load |
| Short-Term Service Temperature |
-30°C to +90°C |
| Country of Origin |
United Kingdom |
Application Instructions
For optimum adhesion, ensure both surfaces are clean, dry and free from dust, oil, grease and other contaminants.
-
Cut or tear the required length of tape.
-
Apply the exposed adhesive side to the rear of the label or component.
-
Press firmly to establish good contact with the surface.
-
Remove the protective release liner.
-
Position the component carefully and apply firm, even pressure.
Adhesion performance depends on the substrate, surface finish, temperature and environmental conditions. Testing is recommended before use in demanding applications, particularly on rough, porous or low-surface-energy materials.
Professional Industrial Fixing Solution
Whether you are mounting engraved labels, machinery identification plates or decorative plaques, our high-tack double-sided adhesive tape provides a practical, economical and professional fixing method.
Supplied by Identitag Ltd – specialists in industrial engraving, identification labels and nameplates.
